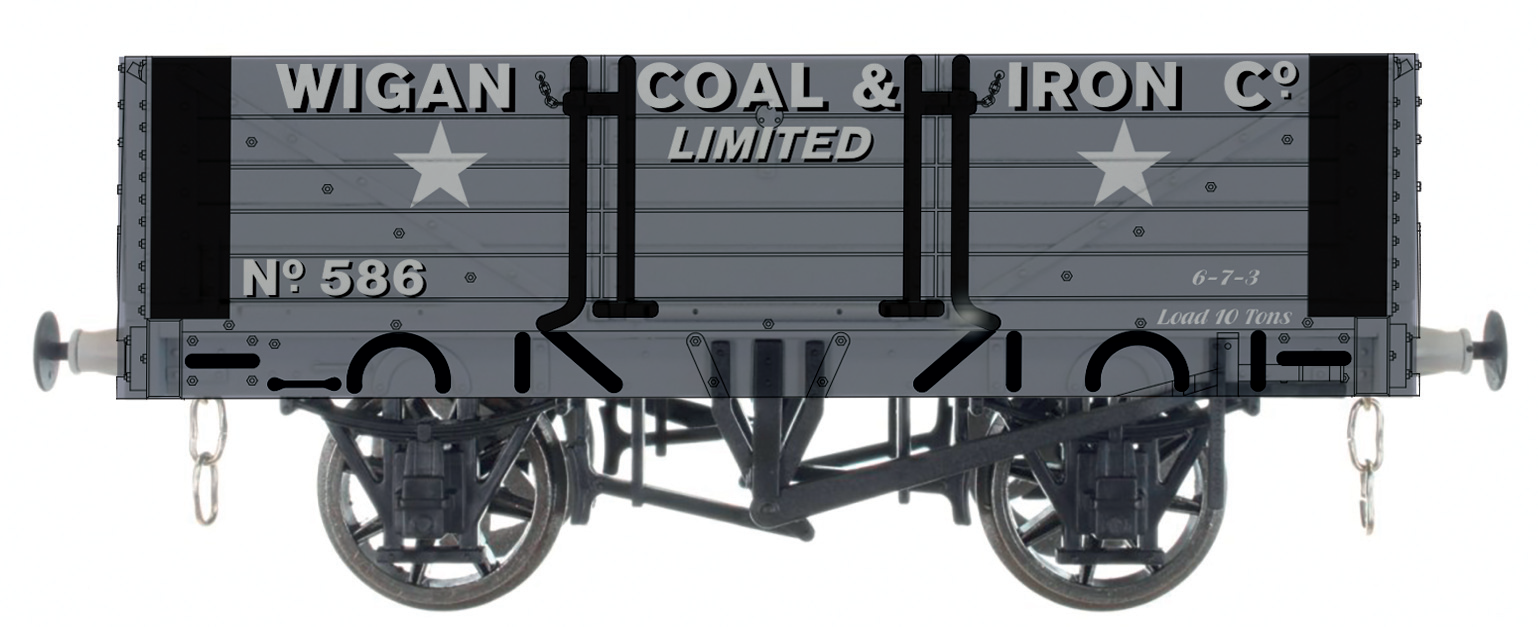

Following the successful sales of the limited edition Moy wagons the Guild has decided to release three more special editions that will only be available from the Gauge O Guild. The 5-plank Wigan is now available in addition to the 7-plank Fife and the 7-plank Renwick.
Dingham jigs are an aid to enable accurate alignment of the Dingham couplings.
The photos show the jigs in kit form and how they are used in practice.
Comes complete with instructions.

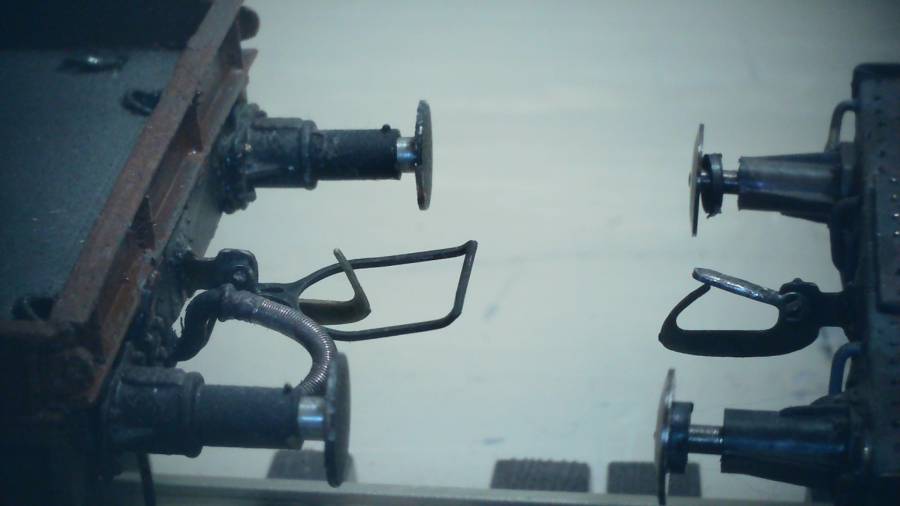

Pack of nickel silver etches to make sufficient autocouplers for 20 7mm scale vehicles.
Supplied with soft iron wire for droppers and brass wire for pivots plus full illustrated instructions
You can see more detail and assembly instructions in the wiki here
A short video showing the autocouplers in action is here
Download instructions

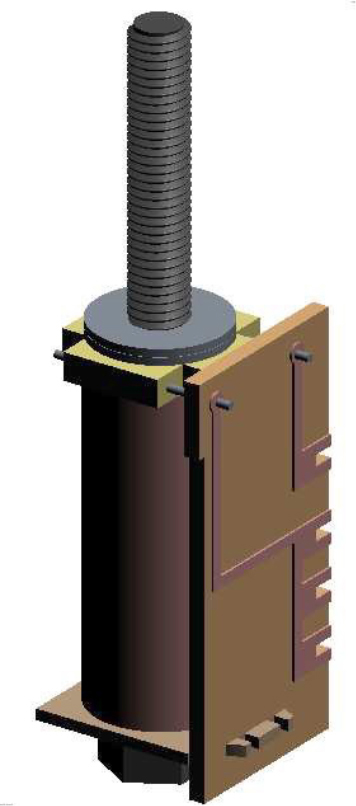

Electromagnet to unlatch Dingham Autocouplers. Supplied with a 55mm M5 bolt as a pole piece and 3 M5 washers to facilitate mounting under the baseboard. Full instructions and wiring diagram included.
An article on the electromagnet uncoupler and a guide as to where they should be placed on the layout can be found at the end of the article on the Dingham Autocouplers in the wiki here
Download wiring diagram
32mm roller gauge. The slot is shaped to allow the rail to cant at 1 in 20 as the prototype. This 1:20 cant is created by the shape of the plastic chairs from the well known track building suppliers. Zinc plated against rust.

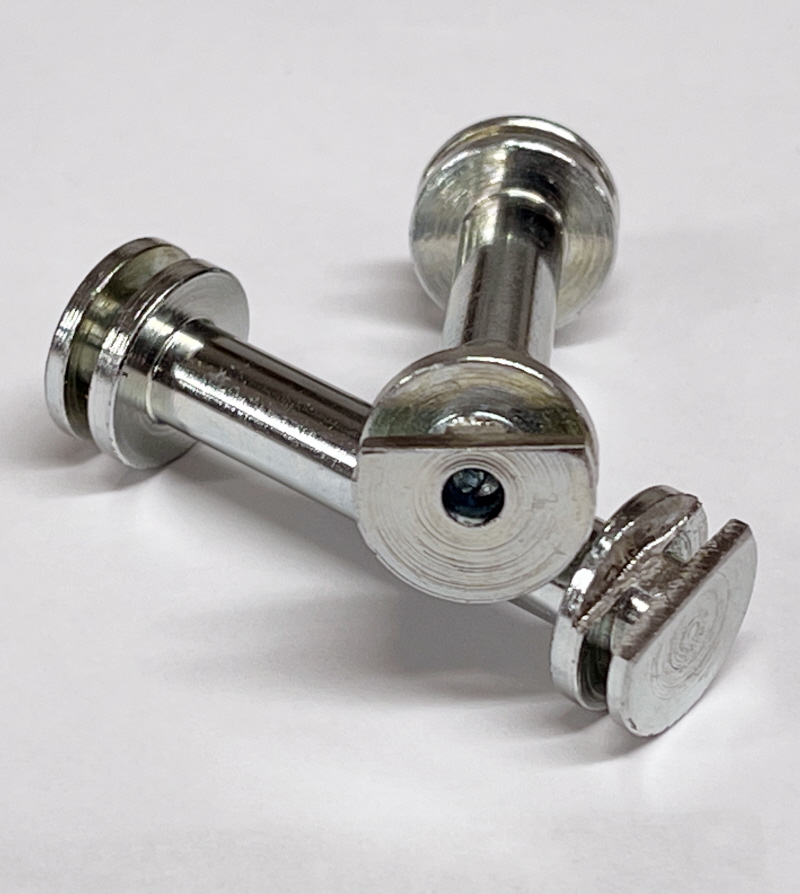

As the standard roller gauge but with a milled flat on the outer ring to facilitate working near the nose of a crossing Vee

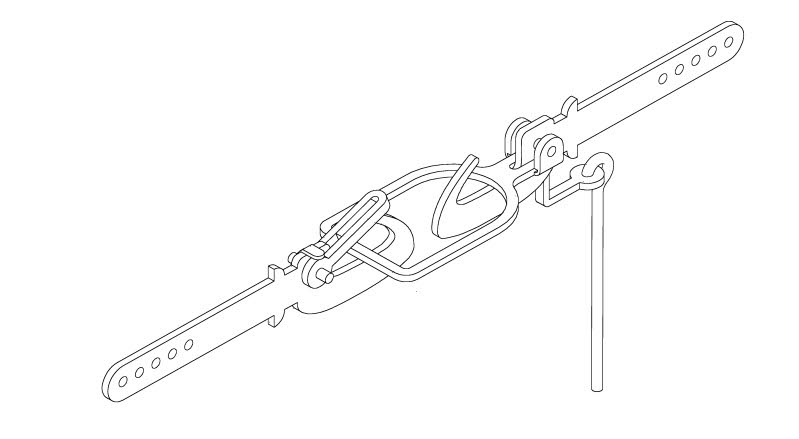

Nickel silver etched sheet to make sufficient autocouplers for 20 4mm scale vehicles.

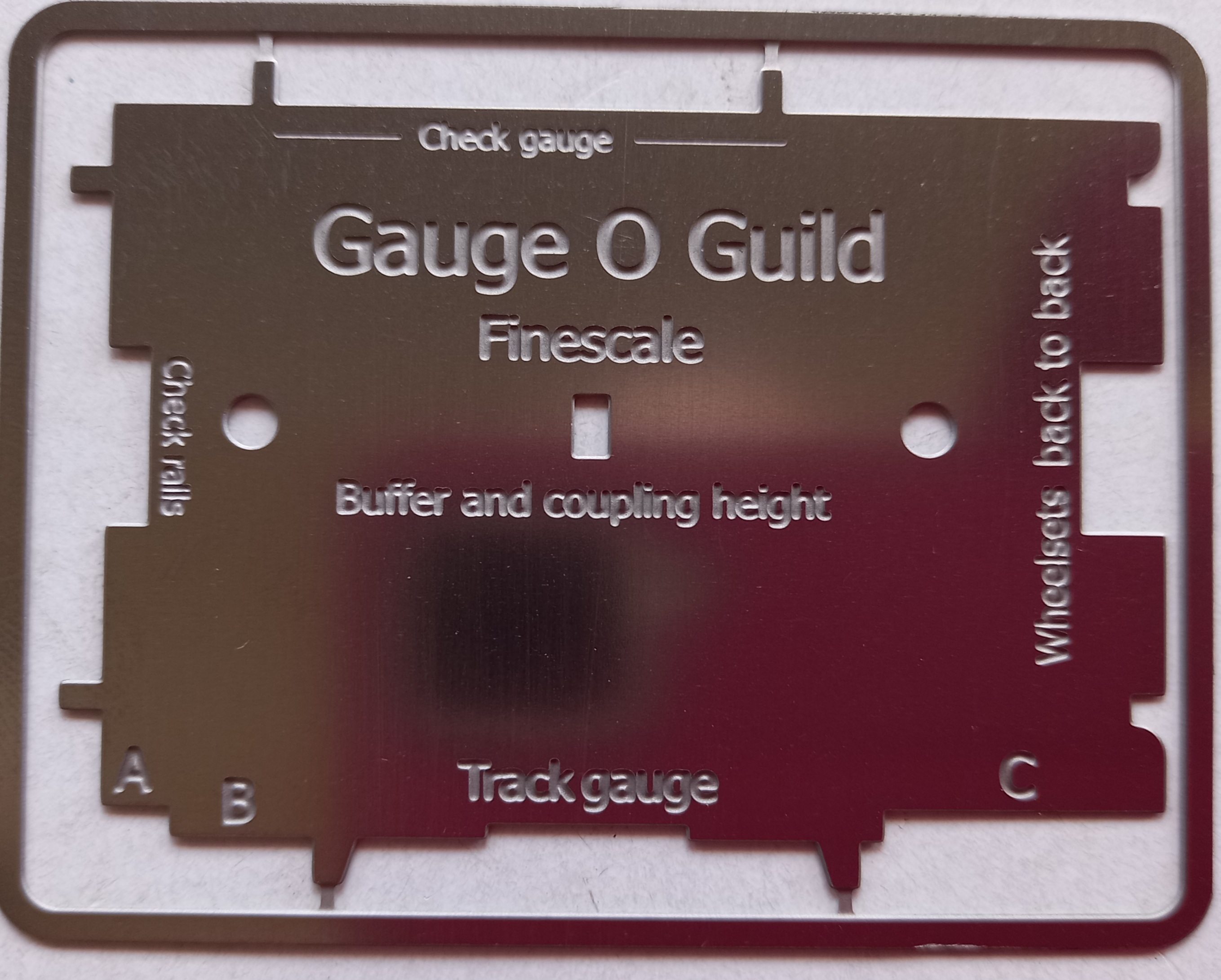

Multi Gauge is useful for the following:-
Buffer & coupling height (can be useful for fitting Dinghams) Wheelsets back to back Check rails & gauge Conductor rail height Conductor rail offset Platform clearance.
